Give your Ford Ranger a commanding, aggressive appearance and impressive off-road capabilities with Rough CountryΓÇÖs 5in Suspension Lift! This all-inclusive kit comes with everything you need for increased ground clearance and a lifted, leveled stance.Rough CountryΓÇÖs 5in Suspension lift includes front and rear crossmembers and a set of lifted knuckles, offering plenty of ride height to clear up to a 33-inch tire! A set of included, front brake lines and a durable steel skid plate help ensure your Ranger is ready to tackle any terrain with plenty of clearance and protection. For an impressive ride quality both on and off-road, this kit also includes Rough CountryΓÇÖs nitrogen-charged N3 shocks. These 10-stage variable valving shocks feature a durable 18mm spring loaded piston rod, huge 54mm shock body, and reinforced seals for a long lifespan of smooth performance.This kit requires only minor cutting to install, and features a set of upper control arm cam bolts making it easy to achieve a proper alignment after lifting. Best of all, this kit includes Rough CountryΓÇÖs Lifetime Replacement Guarantee!

Features:

Lifts and levels front with rear Increased ground clearance Includes upper control arm cam bolts for easier alignment

Manufacturer Notes:

17in or larger wheels are REQUIRED . Does NOT fit 11.25" rotors found on some 98-03 models. Does NOT fit models with 31 spline rear axle. Models with 11.25" rotors must upgrade to 12.1" rotors. Models equipped with pulse vacuum hub (PVH) port routed through the knuckle will need to be converted to manual hubs. An upgraded drive shaft is HIGHLY recommended, such as SKU: 5089.1 . A torsion bar tool is required for installation, such as SKU: 1067 . Specialty tools may be required for models equipped with vacuum operated hubs. (see instructions)

Install Time:

6-8 hours

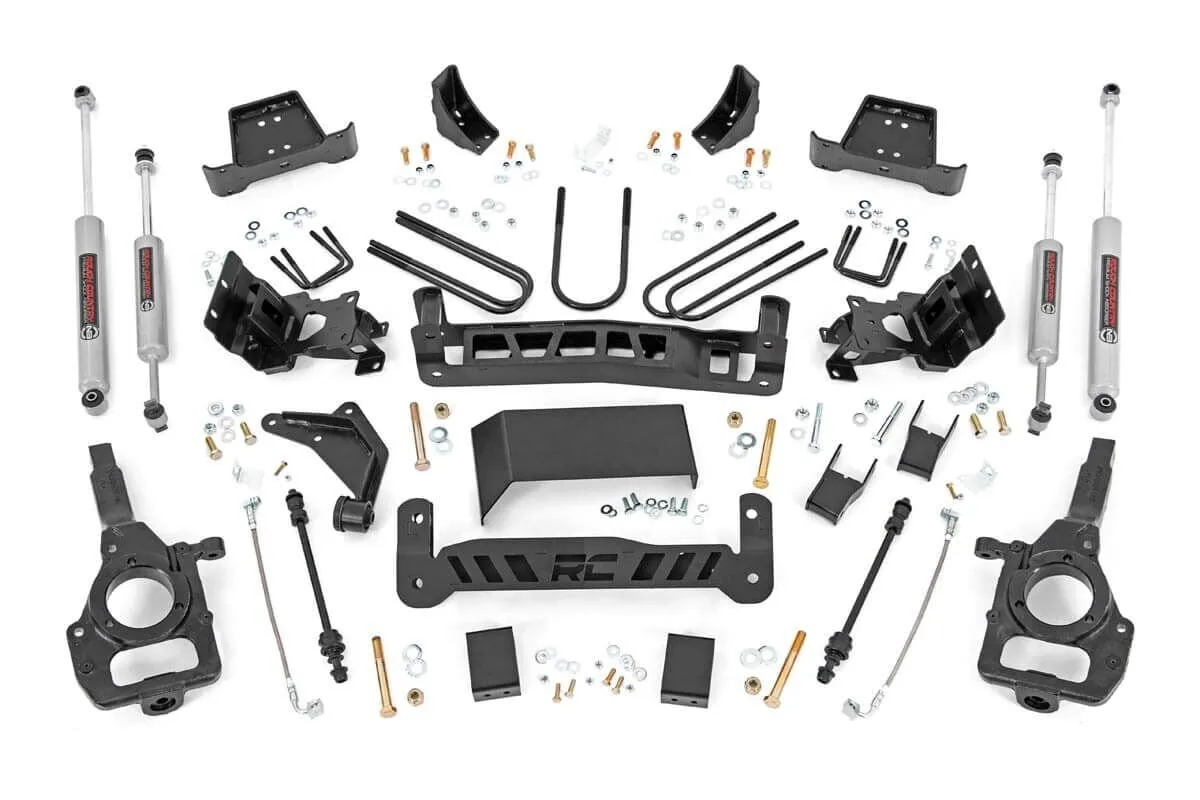

Front Components:

Front Crossmember Lifted Knuckles Skid Plate Differential Brackets Torsion Drop Brackets Sway Links Extended Brake Lines

Rear Components:

Rear Crossmember Differential Brackets Bump Stops Brake Line Brackets Anti-Wrap Rear Blocks U-Bolts



Tire Fitment:

Size	Wheel	Bolt Pattern	Wheel Offset	Note
285/70R17	17x9	5x4.5	-12	-
285/65R18	18x9	5x4.5	-12	-
285/55R20	20x9	5x4.5	-12	-
