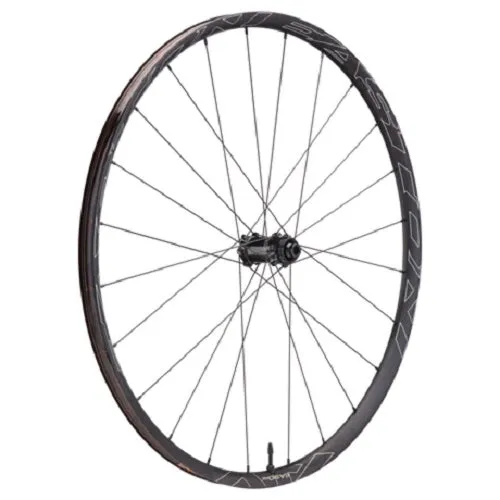

Designed for days like these – gravel epics, strange roads and the opportunity for something different, like getting lost.

The EA90 AX boasts a wide 25mm internal rim bed that is ready for gravel and fits adventure tire profiles from 35-55c.

Its offset asymmetrical design optimizes spoke tension balance, wheel durability and stiffness. Laced to our proven Road Vault Hubs, the EA90 AX wheelset is a versatile upgrade that strikes a balance between the road less traveled and the race ahead.

WHEELSET WEIGHT: 1625g
RIM MATERIAL: EA90 ALUMINIUM
RIM DEPTH: 21mm
INTERNAL RIM WIDTH: 25mm
EXTERNAL RIM WIDTH: 29mm
SPOKES: SAPIM STRAIGHT-PULL DOUBLE BUTTED
SPOKE PATTERN: 24 / 3X
BRAKING: Centre Lock
NIPPLE TYPE: DT EXTERNAL ALLOY
FRONT/REAR HUB: EASTON VAULT CL 12X100 / 12X142
FREEHUB OPTIONS: SHIMANO, XDR OR CAMPAGNOLO
BEARING TYPE: SEALED CARTRIDGE BEARINGS
