Product Details

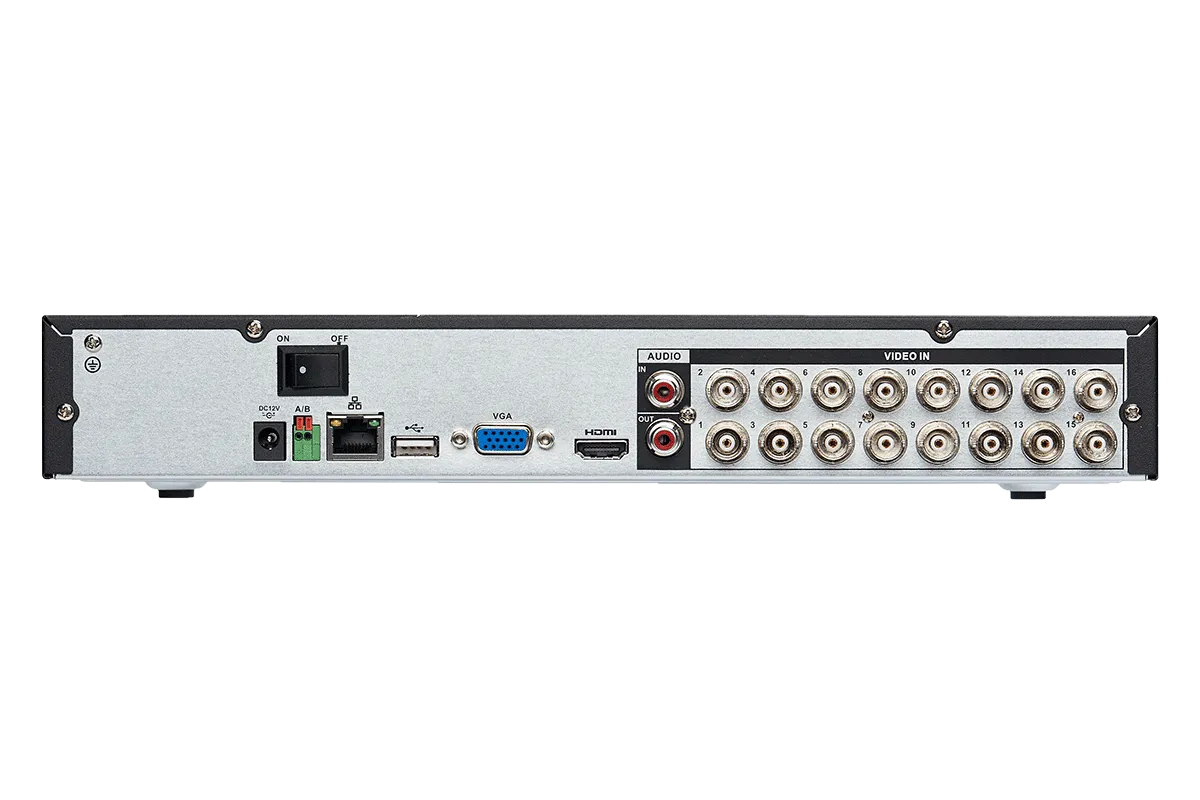

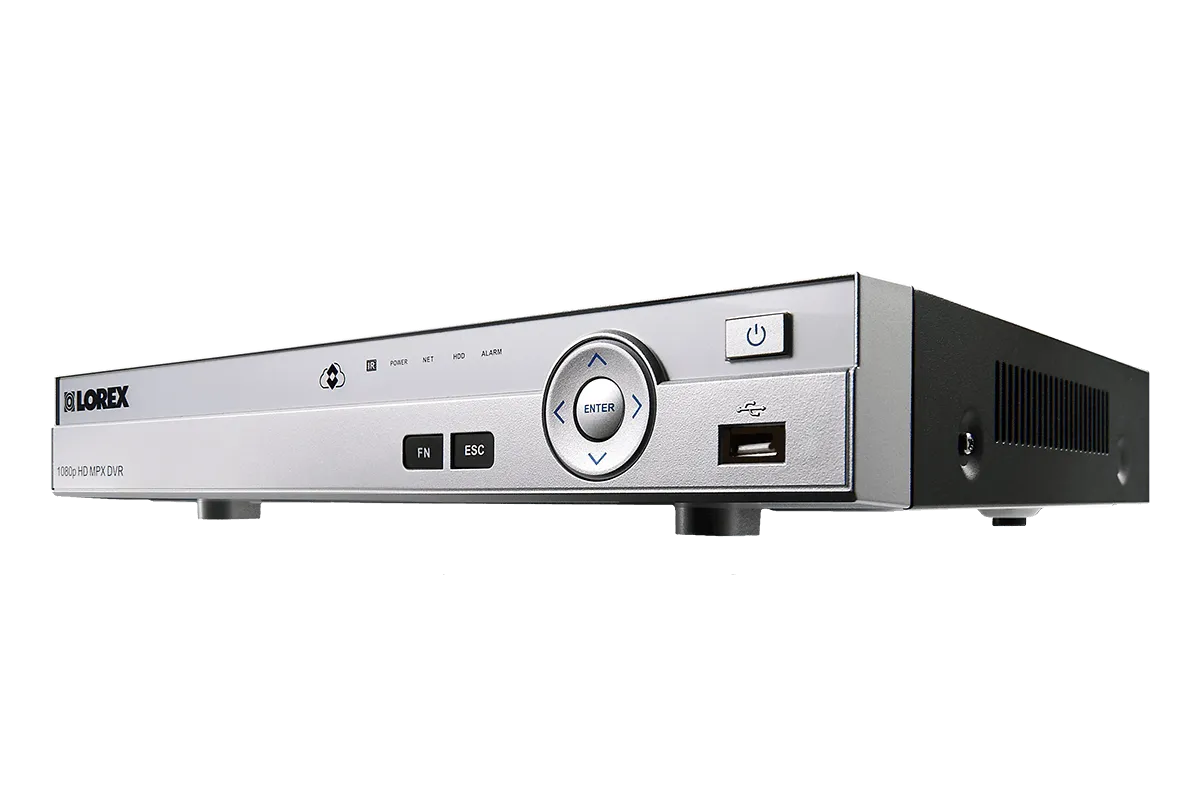

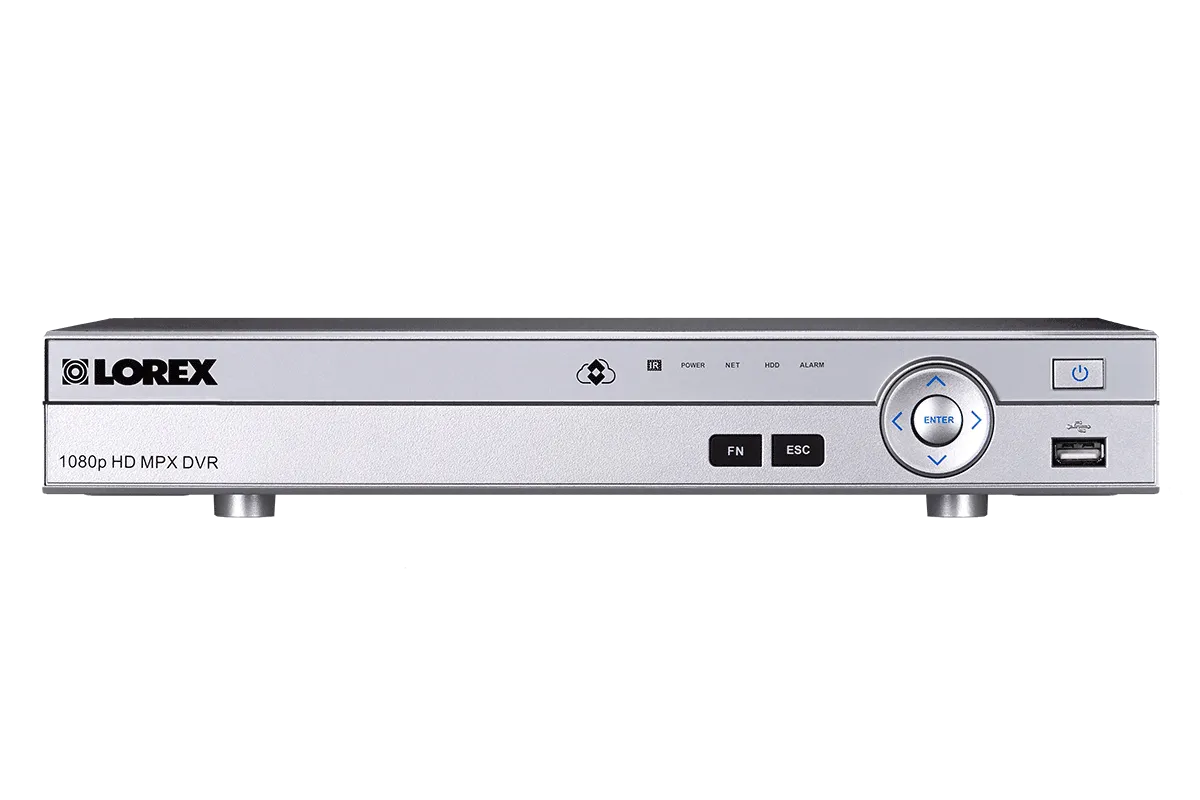

＋Leave nothing to question with best-in-class 1080p HD image quality on all 16 channels with the DV7163 HD DVR from Lorex. This DVR can provide you with exceptionally detailed HD images and smooth on-screen movement. It can be used with our full range of analog security cameras - from 400TVL all the way to 1080p HD. A single RG59 video cable is needed to connect this DVR to your cameras for an easy and flexible installation. Extend the video signal up to 800ft / 242m with a single run of RG59 coaxial cable for larger properties (see documentation for details).

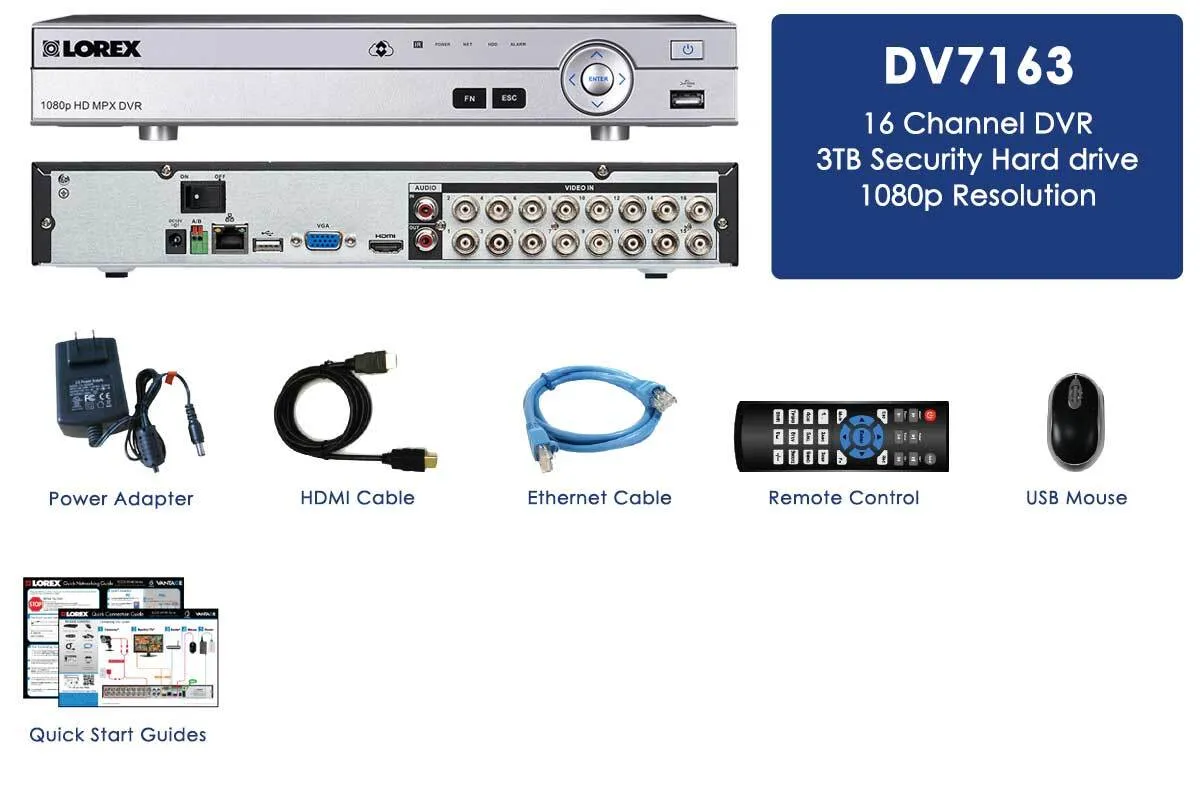

DV7163
SPECIFICATIONS
16
CHANNELS
DVR supports up to 16 cameras
1080p
RESOLUTION
High definition 1080p resolution
3TB
HARD DRIVE
Maximum Capacity 1 x 4TB hard drives
Security DVR with 1080p HD recording
The main reason to purchase a security camera system is to capture useful evidence should an incident ever occur on your property. For this, you need high-quality footage that can see the details you need. Thankfully, the DV700 Series Digital Video Recorder (DVR) is capable of recording crystal clear 1080p HD resolution on all channels. It can also record at a full 30 frames-per-second rate in 720p HD resolution. This high frame rate provides real-time motion, ensuring you don't miss the best moments.
Lorex Cloud™ app for mobile viewing
Introducing a new state-of-the-art solution for viewing your security system over the internet. With no recurring fees and a simple 3-step set-up, the free app enables you see what your cameras see (or watch recorded playback) from virtually anywhere in the world. With iOS and Android options, your security system will always be at your fingertips. Stay up-to-date with push notifications and instant email alerts with snapshot attachments for motion events.
Works With
Supports a full range of MPX, analog, CVI, and wireless cameras
This DVR is compatible with our full line of high definition MPX and wireless security cameras (excluding wire-free security cameras). It is also backward compatible, meaning older analog and CVI security cameras will still work as well.
Upgrade older DVR systems
The technology within a Lorex DVR has changed drastically over the past few years. Thankfully the way in which camera cables are connected to it has not. This means that it is extremely easy to upgrade your older DVR security system to a new one. You can also easily swap your older analog cameras for brand new HD ones using the same cabling.
Supports audio on all channels
Feel free to add a couple of Lorex's premium audio cameras to your DV700 Series DVR. It supports audio on every channel via the coaxial BNC cable connection. The use of an (such as the ) can enhance your security coverage by providing you with more evidence (such as voices) and can expand your security coverage beyond the camera's field of view (FOV).
Reliable high-efficiency HDD
The 3TB within the DV7163 HD DVR from Lorex will provide you with weeks (or even months) of reliable footage. This hard drive is tuned specifically to handle the high workloads demanded by security monitoring and can continue to record even while you watch recorded footage. Record at 1080p or set it to a lower resolution to extend recording times.
Visit our to estimate your desired specifications.
Multiple recording modes
This DVR is designed to suit your recording needs - choose to record footage continuously, during scheduled times, or only when movement is detected. These recording options can be customized with each camera, which means that you can have your most important cameras recording continuously while other cameras only record during certain times or on motion events. A pre-recording function that goes back to record the five seconds before motion is detected is also built into this DVR, so you never have to worry about missing those first vital moments.
Automatic overwriting of oldest footage
Running out of space on the hard drive? Not to worry, you don't have to do a thing. This DVR is designed to automatically overwrite the oldest data with the newest data.
Over the Internet Updates
This DVR will always be up-to-date and protected from any new vulnerabiloties thanks to automatic firmware updates. These free updates will occur without you having to push a button as long as the DVR is connected to the intenet.
Automatic recovery
There is no need to worry about your security system if there is a power outage. The DV700 Series DVR has an auto-recovery function that will automatically reboot and start recording again once the system regains power. This means that you don't have to do a thing. There is also a Watch Dog feature built-in to this DVR that continuously monitors the system for potential system errors. If this feature ever detects a critical error, it will automatically reboot the system. This helps ensure system stability, keeps your cameras recording, and prevents future system failures.
Image resolution comparison
| Recording | Full 1080p HD (1920x1080) | 720p HD (1280x720) | Analog 1080p HD (1920x1080) | 720p HD (1280x720) |
| Platform | 1080p HD NVR systems | 720p HD NVR systems | 1080p HD DVR systems | 720p HD DVR systems |
| Video | Digital IP / RJ45 connection | Digital IP / RJ45 connection | Analog BNC / RG59 connection | Analog BNC / RG59 connection |
| Power | PoE (Power over Ethernet) | PoE (Power over Ethernet) | Standard DC power | Standard DC power |
| Installation | Connect cameras to NVR or to router/LAN | Connect cameras to NVR or to router/LAN | Cameras require wired connection to DVR | Cameras require wired connection to DVR |
