Product Details

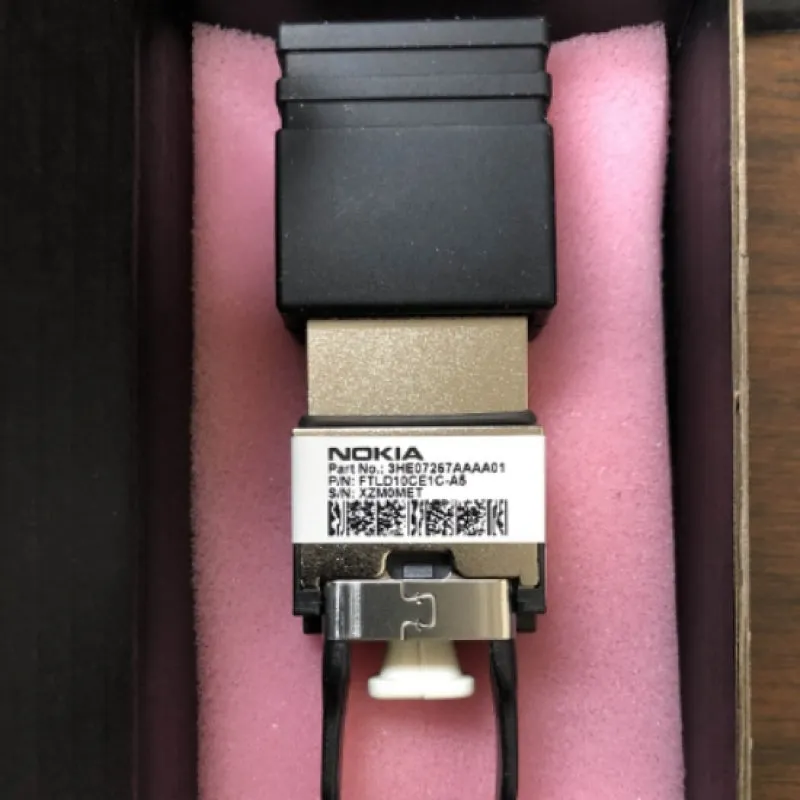

＋Finisar’s FTLD10CE1C CXP transceiver modules are designed for use in up to 100 Gigabit per second links over multimode fiber.
Features:
- 12-channel full-duplex transceiver module
- Hot Pluggable CXP form factor
- Maximum link length of 100m on OM3 Multimode Fiber (MMF)
- Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
- Unretimed CPPI electrical interface
- Requires 3.3V power supply only
- Low power dissipation: < 3.5W
- Reliable VCSEL array technology
- Built-in digital diagnostic functions
- Commercial operating case temperature range: 0ºC to 70ºC
- Single MPO connector receptacle
- RoHS-6 Compliant (lead-free)
Applications:
- 100GBASE-SR10 100G Ethernet
- Multiple 4G/8G/10G Fibre Channel
