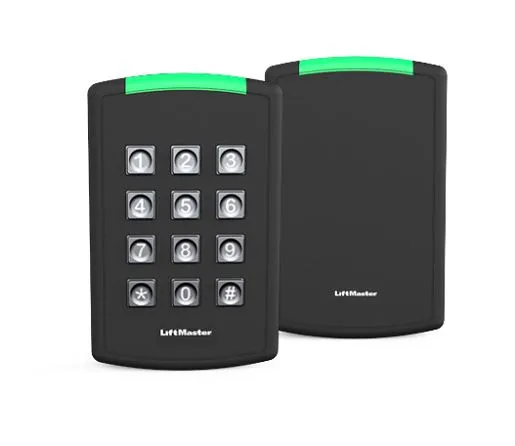

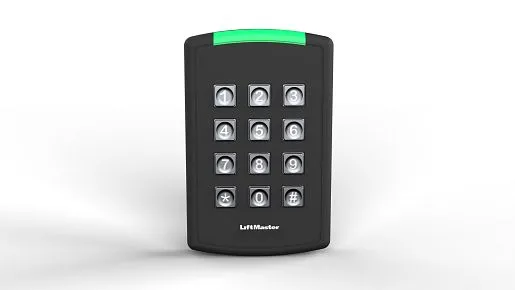

LiftMaster Smart Readers offer a contemporary appearance and leading-edge feature set to add access control to any door or entrance in your building or community including mobile credentials capabilities.
Standard technologies include Proximity (125 KHz), Smart (13,56 MHz) and Bluetooth, so that customers can migrate to newer secure credentials.
BLE communication enables myQ Mobile Credentials within the myQ Community app and ecosystem.
OSDP Auto-Connect feature to switch from Wiegand to OSDP when connected to the OSDP port on the CAPXLV2.
Accelerometer - based tamper detection
Tri-State LED light bar for user feedback
Accommodates indoor and outdoor installation environments
Specs
Connectivity
Wiegand; Dependent on Door Controller: CAPXLV, CAPXLV2, CAPXM, or CAP2D
RF Technology
125 KHz & 13.56 MHz
OSDP Autodetect
OSDP Secure Channel and remote firmware upgradability
Mobile Communication
BLE to enable myQ Mobile Credentials with the myQ Community app
Read Range
125 KHz up to 4”
13.56 MHz up to 2.5”
BLE – mode dependent
125 KHz up to 4”
13.56 MHz up to 2.5”
BLE – mode dependent
Temperature Range
UL ™ tested -35° to 66°C and EN -40° to 70°C and 95% humidity
Regulatory
UL294 Compliant
Environmental
IP55
Warranty
Accessory Warranty 1 year
